CAD / CAM Services

Over the last 36 years, we have developed exceptional talent in the industry of CAD Engineering, Additive Manufacturing, CMM/Inspecting, Simulation, and Reverse Engineering. CAD/CAM Services holds advanced certifications in most major CAD Software Systems (CATIA, Siemens NX, PTC Creo, Solidworks, Inventor, and AutoCAD). Also, we are authorized dealers in the most widely used industry-standard 3D scanners and 3D printers. Our ramp-up is immediate.

Professional CAD Engineering Outsourcing.

Differentiators:

CAD / CAM Services has spent 34 years delivering some of the world's largest and most complex CAD Engineering projects. Our projects range from converting over 1,000,000 technical drawings for Amazon.com into 2D and 3D CAD files to complex stealth aircraft..

Common tasks include:

1)            Mylar to Catia

2)                  CAD Migration

3)                  Reverse Engineering

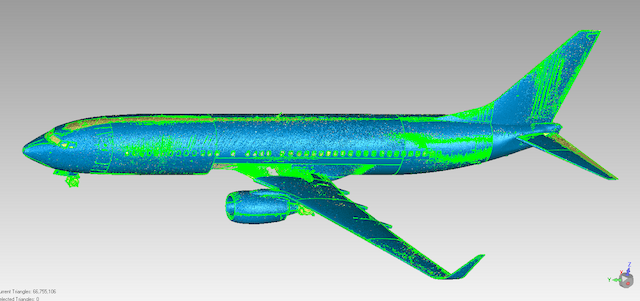

4)                  Point Cloud to 3D CAD

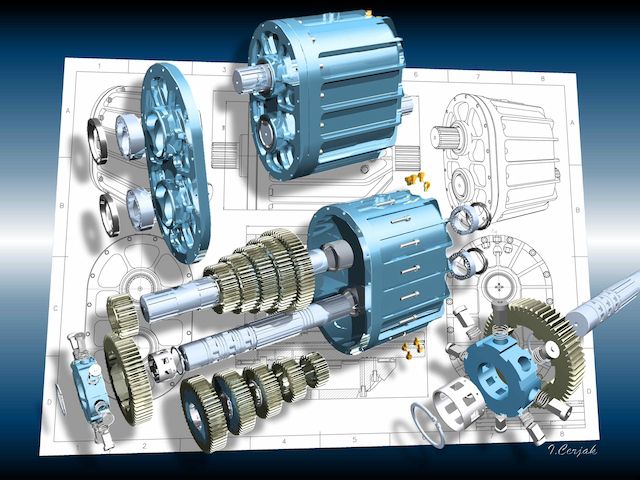

5)               3D Design and modeling

6) Legacy to 2D and 3D CAD

7)                  3D Engineering and Design

8)                  CAD Engineering Simulation

9)                  Feature-based CAD translations

10)              Mold Tool & Die design and simulation

11)              3D designs to sheet metal shop drawings

12)              CMM & Metrology inspecting with Creaform

13)              Providing off-site Professional 3D CAD Services

14)              NDT scanners (Vscan & Microtek), and NDT film scanning

15)              3D Wire harness design using Siemens Capital and Catia

16)              We use and sell Creaform 3D Scanners

ITAR – GSA – DLA registered. SBIR Contract holder for "Large Body Metrology" for the F-35 and other large body craft,

Past & present projects include:

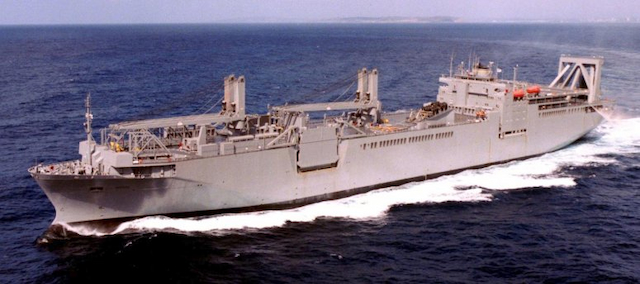

•                   The Navy – 900' Sealift vessel

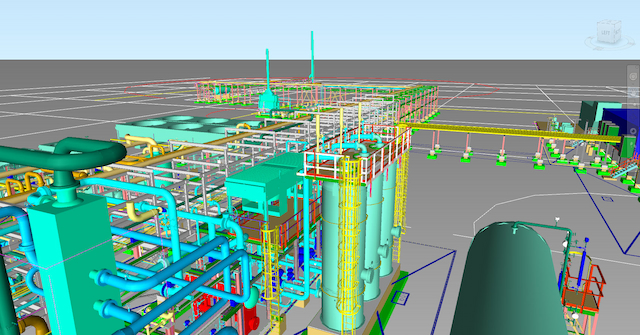

• Utility Global - Hydrogen power plant

•                    Amazon.com - 1,000,000 3D CAD files

•                    Missile, weapons, and Satellite designs such as LeoStella

•                    Astra Aerospace – Space-based rocket engine design

•                    Byton – Catia autonomous electric cars (think of the Tesla S)

•                    Litton Ingalls – A Catia project for the Gerald R Ford-class carrier

•                    Central Arizona and Memphis Power and Light, 5-year 40,000 & 55,000 Legacy to CAD projects

•                    Providing several Creaform Metrology grade scanners to the Air Force, Lockheed, Bell Flight, and others

The sale of 3D scanners

·
